5PCS Panel Mounting RJ45 Waterproof Connector M25 Cat5/5e Ethernet LAN Cable Coupler with Waterproof/Dust Cap Cover 25cm Network Cable for Outdoor Network

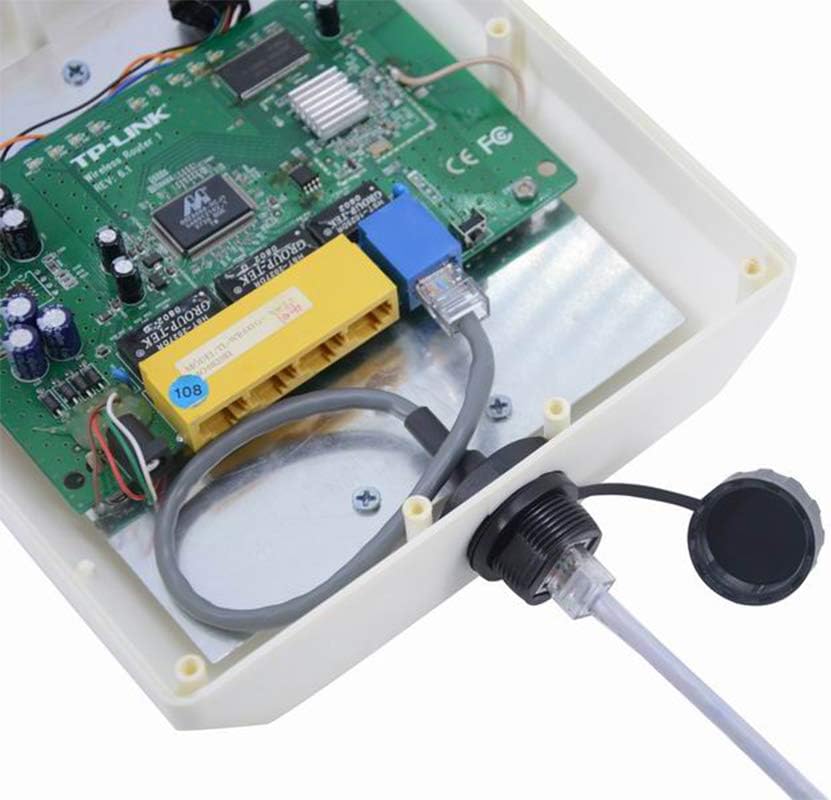

The industrial panel mount RJ45 ethernet lan cable coupler is used to turn the standard CAT5/5e patch cord into the waterproof type for the ethernet connecting in the harsh industrial or outdoor environments. A gasket seal provides optimum protection from moisture and other contaminants with an IP67 rating. Using the standards based RJ45 connection system insures compatibility with existing hardware. Specifications: Number of cores: 8 PIN Waterproof rating: IP67 Connection type: RJ45 Network cable length: 250mm/9.84inch Flame retardant rating: UL94V-0 Connection method: plug type + thread pressure lock Mounting hole size: M25*1.5 Case wall thickness: 0.3~4mm Connector transmission classification: CAT5E Transmission speed range: 10BASE-T. 100 BASE-T and 1000 BASE-T network Electrical parameters: Rated current: 1.5A Rated voltage: 125VAC, 75VDC Insulation resistance: ＞500MΩ Compressive strength: AC 500V 50HZ or 60HZ for 1 minute Contact resistance: ＜10mΩ Material: Shell: Nylon PA66 (UL94V-0) Socket contact pin: 0.5mm diameter phosphor copper wire Contact pin gold plating thickness: 6u inch Waterproof rubber ring: silicone Environmental conditions: Working temperature: -40～120Celsius Storage temperature: -25～85Celsius Atmospheric pressure: 86～106kPa Relative humidity: ≤90% RH Package Included: 5x Waterproof RJ45 Connector

• PRODUCT FEATURES: Waterproof at one ends, the panel can be fixed, the network cables are connected to the connector through the waterproof head, and can be used as a cable extension cable.
• SUITABLE for Harsh Industrial or Outdoor Environments: The Waterproof RJ45 Connector are IP 67 Compliant, 25mm thread mounting hole. Prevented from temporary immersion for 30 min in 1 meter depth of water. Prevent the network parts from moisture, dirt and insects for quality connections.
• EASY INSTALLATION: It is miniaturization, and save installation space, RJ45 male to female field installable coupler, no soldering, no installation tools, just plug the standard crystal head directly for quick installation.

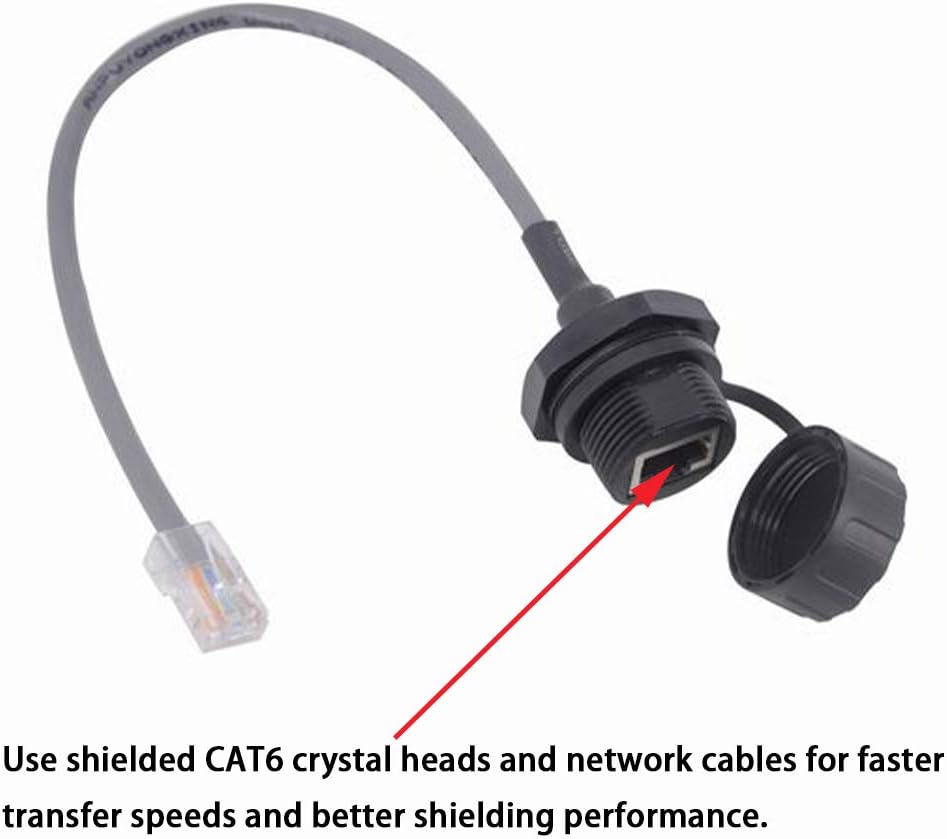

• Faster speed & Better shield: Use shielded CAT6 crystal heads and network cables for faster transfer speeds and better shielding performance.
• Quality Assurance: Professional waterproof connector manufacturer, with IP67 certification, CE certification, RoHS certification. The product undergoes rigorous inspection before leaving the factory.
