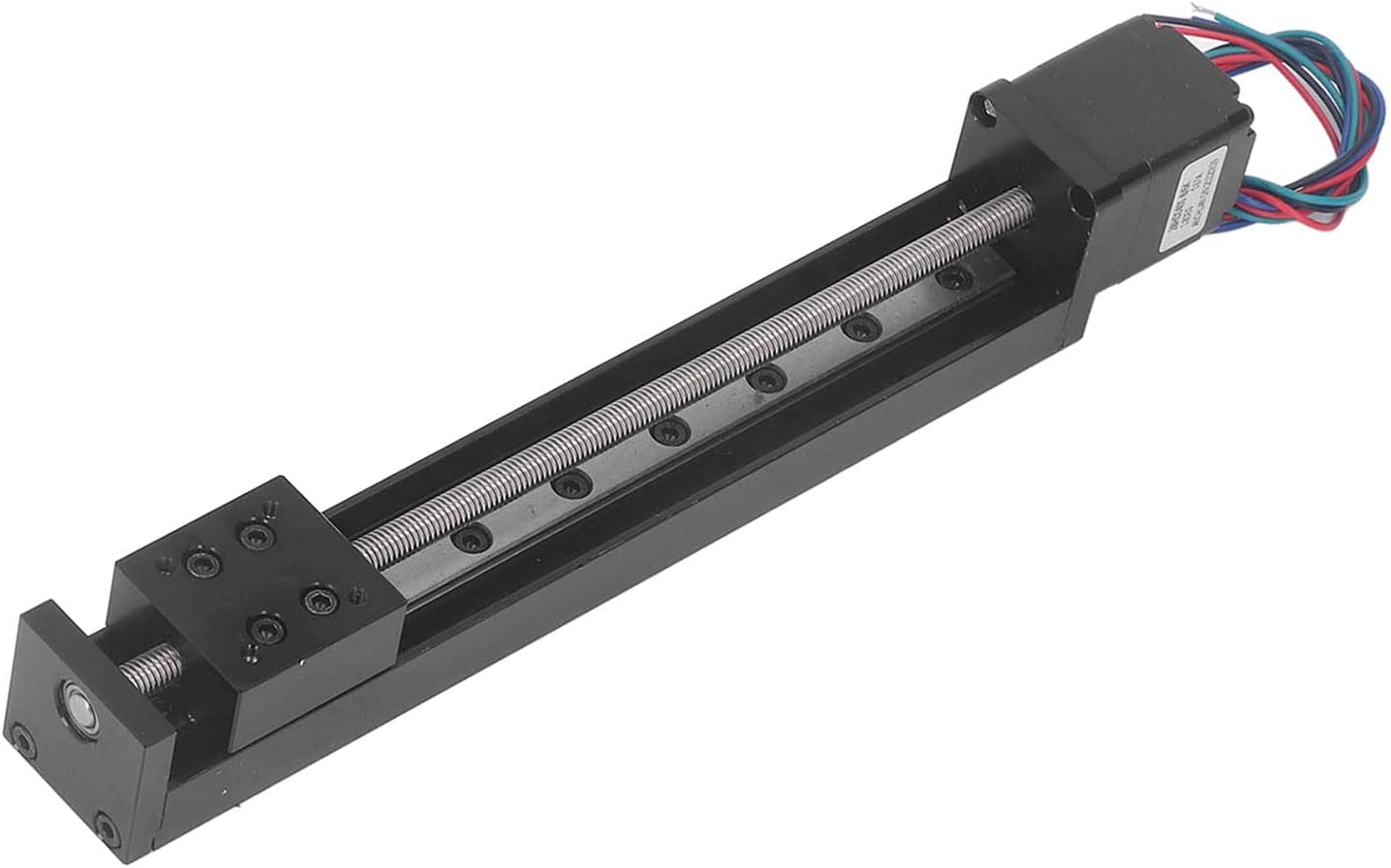

Luqeeg 28 Stepper Motor Motion Stage 200mm Stroke Mini Linear Rail Slide Actuator for DIY CNC Router Parts X Y Z Linear

1. APPLICABLE SCENES: Sliding table is widely used in DIY CNC router parts, testing equipment, optical laboratory accuracy measurement, fine tuning displacement, production machinery, mechanical equipment positioning and movement 2. STABLE AND EFFICIENT: The sliding table is made of excellent metal, possess fine workmanship, Durability-Optimized, high work efficiency, is an essential part of linear motion 3. ACCURATE AND LOAD: Sliding table repeated positioning accuracy is ±0.05mm, the maximum horizontal load capacity is 2.5kg, the maximum vertical load capacity is 1kg, speed from 0‑120mm/s 4. SIZE INFORMATION: Slide actuator has 200mm effective stroke, 6mm diameter, 1mm helical pitch, 1mm step(the screw rod can move 1mm in one turn) 5. INSULATION AND MUTE: High speed mute screw rod, single track running smoothly, using insulation materials, and thickened bottom plate design to ensure stability of work Specification: Item Type: Mini Linear Rail Slide Actuator Material: Alloy Stroke: Approx. 200mm / 7.87in Load: Horizontal: ≤5KG; Vertical: ≤1KG Positioning Accuracy: ±0.1mm Holding Torsion: 6N.cm Current: 0.6A Resistance: 5.5Ω Inductance: 3.2MH Speed: 0-120mm/s Step Angle: 1.8 Degrees Diameter: Approx. 6mm / 0.24in Helical Pitch: Approx. 1mm / 0.04in Step: Approx. 1mm / 0.04in How to Use: Install and use directly. PackageList: 1 x Mini Linear Rail Slide Actuator

• APPLICABLE SCENES: Sliding table is widely used in DIY CNC router parts, testing equipment, optical laboratory accuracy measurement, fine tuning displacement, production machinery, mechanical equipment positioning and movement
• STABLE AND EFFICIENT: The sliding table is made of excellent metal, possess fine workmanship, , high work efficiency, is an essential part of linear motion
• ACCURATE AND LOAD: Sliding table repeated positioning accuracy is ±0.05mm, the maximum horizontal load capacity is 2.5kg, the maximum vertical load capacity is 1kg, speed from 0‑120mm/s
• SIZE INFORMATION: Slide actuator has 200mm effective stroke, 6mm diameter, 1mm helical pitch, 1mm step(the screw rod can move 1mm in one turn)
• INSULATION AND MUTE: High speed mute screw rod, single track running smoothly, using insulation materials, and thickened bottom plate design to ensure stability of work
